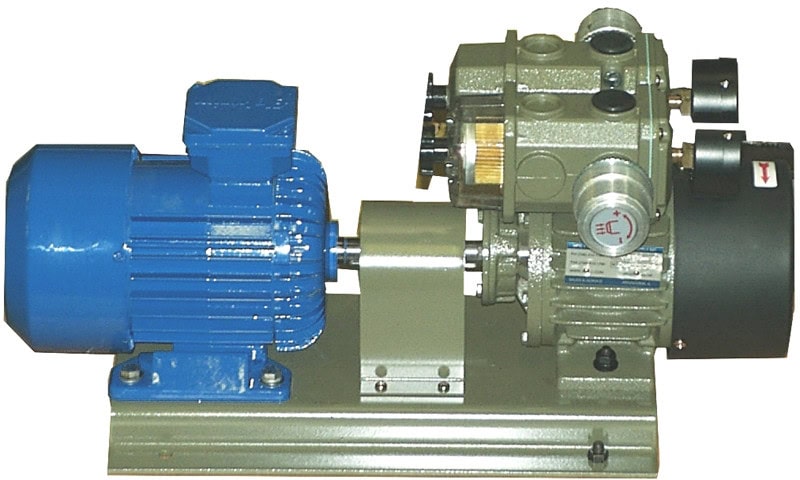

The JVP-5 Vacuum pump is a oil-free dry running vane pump. It is a stock item from the JVP line of pumps. This pump can produce up to 25 inches of Mercury, and up to 13.6 CFM (cubic feet per minute). The JVP-5 would typically use a 1.0 hp or .75kW three phase motor, but can also be coupled with a single phase motor. The modular configuration makes this pump very easy to maintain, with one knob nut to replace or inspect filters. It is a direct coupled direct drive vacuum pump which runs at 1700 rpm.
The standard porting on the JVP-5 is two (2) 3/4 “ NPT ports for the vacuum. One for the vacuum regulator, which is standard, and the second port is for you to hook up to your application. There would also be a 1/4“ NPT port with a vacuum gauge.
Option: Two 3/4″ NPT ports for the pressure, with a 1/4″ port for the pressure side.
Option: Complete vacuum setup for Vacuum, ported for vacuum, without motor.
Option: Vacuum pump only. Complete pump, less base, and manifold, motor and coupling.
These pumps are in production daily on printing presses, vacuum frames, robotic arms, etc. The JVP-5’s rugged design makes it suitable for most industrial applications.
More information, including technical specifications, coming soon.
Orion CBX-15 Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| CBX15 | No Motor | 10-20 | 25.0" | 8.5 psig | ||||
| CBX15 | 208-230/460V | 1750 | 1.0 | 10-20 | 25.0" | 8.5 psig | 90.4 | 41.0 |

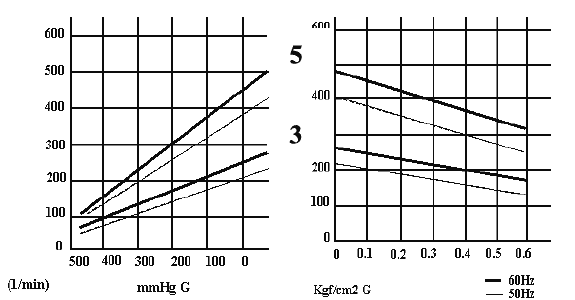

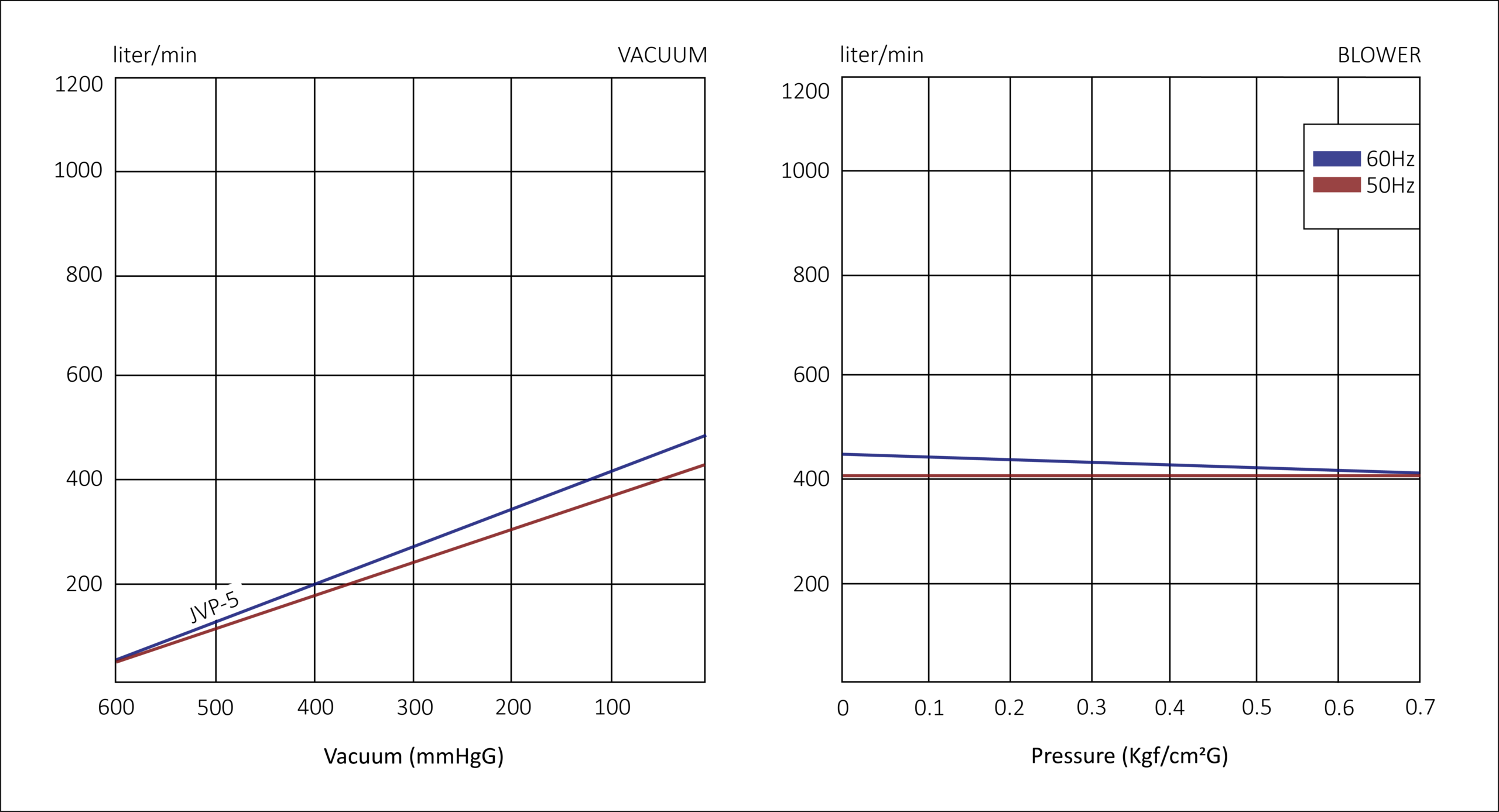

Performance Specifications
External Dimensions
| H | D | W | A | B | C | E | F | G |
| 269 | 324 | 473 | Ø162 | 80 | 135 | 42 | 177 | 50 |
| I | J | K | L | M | N | O | P | Q |
| 229.5 | 211 | 50 | 65 | 225 | 287 | 35.5 | 106.5 | 232 |
| R | S | T | U | V | X | Y | Z | a |
| - | - | 324 | 90 | 205 | 233 | 3.2 | 4-Ø9 | 170 |
| b | c | d | e | |||||
| 28 | 97 | 28 | 30 |
Note: Dimensions in mm
Orion CBX-15 Part Breakdown
| # | Part | Part Number |
|---|---|---|
| 1 | Motor | JVP-5 Three Phase |
| 2 | Belt Cover Left | JVP-3DP-00002A/3B |
| 3 | Belt Cover Right | JVP-3DP-00002A/3B |
| 4 | Drive Belt(2) | 35302430010 / JVP-3DP-00004 |
| 5a | Pump Pulley (A) | 04037303010 / JVP-3DP-00005A/B |
| 5b | Pump Pulley (B) | 04037303010 / JVP-3DP-00005A/B |
| 6 | Motor Pulley | 04037302010 / JVP-3DP-00006 |
| 7 | Spring | JVP-3/5/6DP-00007 |
| 8 | Base Plate (Pressure) | JVP-3/5/6DP-00008 |
| 9 | Base Plate (Vacuum) | JVP-3/5/6DP-00009 |
| 10 | End Plate | Contact |
| 11 | Motor Retaining Plate | 4009723010 |
| 12 | Adjustment Rod | ADJ-6MM |
| 13 | Complete Base | Base-CBX-15 |
Product Manual
Orion CBX-15 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1001-00027 | 4 |
| Spring Tube, new style, Filter-side | JVP-1001-00029V | 4 |
| Rubber Gaskets for Filter Case and Muffler cover | 03039263010 | 4 |
| Washer Gaskets for Filter Knobnut | JVP-1001-00033A | 4 |
| Manifold Gasket | JVP-1001-00013 | 2 |
| Shims / Liners | JVP-3-00010 | 20 |
| Bearings | JVP-3-00006 | 4 |
| Bearing Spacers | JVP-3-00007 | 4 |
| Vanes | JVP-3-00003 | 8 |
| Timing Belts | JVP-3DP-00004 | 2 |
