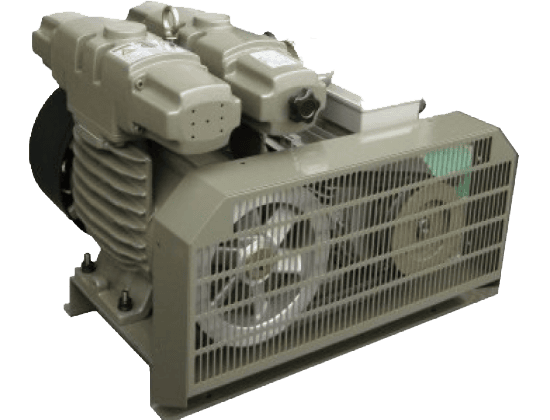

The JVP-10 Vacuum pump is an oil-free dry running vane pump. It is a stock item from the JVP line of pumps. This pump can produce up to 25 inches of Mercury, and up to 65 CFM (cubic feet per minute). The JVP-10 would typically use a 5.0 hp or 3.75kW three phase motor but can also be coupled with a single-phase motor. The modular configuration makes this pump very easy to maintain, with one knob nut to replace or inspect filters. It is a direct coupled direct driven vacuum pump which runs at 1100 rpm.
The standard porting on the JVP-10 is two (2) 1.25″ NPT ports for the vacuum. One for the vacuum regulator, which is standard, and the second port is for you to hook up to your application. There would also be a 1/4″ NPT port with a vacuum gauge.
Option: Two 1.25″ NPT ports for the pressure, with a 1/4″ port for the pressure side.
Option: Complete vacuum setup for Vacuum, ported for vacuum, without motor.
Option: Vacuum pump only. Complete pump, less base, and manifold, motor and coupling.
These pumps are in production daily on printing presses, vacuum frames, robotic arms, etc. The JVP-10’s rugged design makes it suitable for most industrial applications.
More information, including technical specifications, coming soon.
Orion CBX-15 Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| CBX15 | No Motor | 10-20 | 25.0" | 8.5 psig | ||||
| CBX15 | 208-230/460V | 1750 | 1.0 | 10-20 | 25.0" | 8.5 psig | 90.4 | 41.0 |

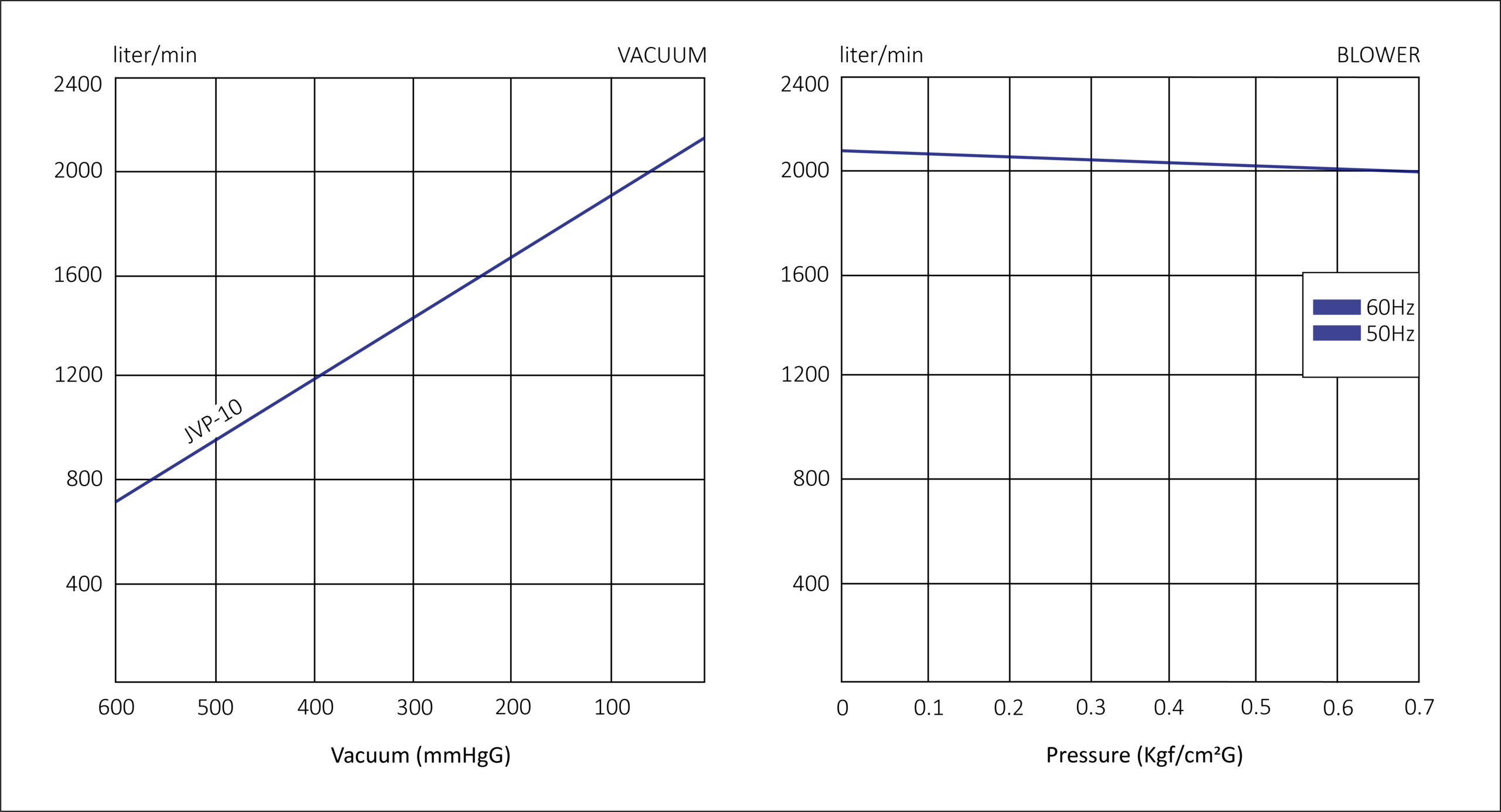

Performance Specifications
External Dimensions
| H | D | W | A | B | C | E | F | G |
| 269 | 324 | 473 | Ø162 | 80 | 135 | 42 | 177 | 50 |
| I | J | K | L | M | N | O | P | Q |
| 229.5 | 211 | 50 | 65 | 225 | 287 | 35.5 | 106.5 | 232 |
| R | S | T | U | V | X | Y | Z | a |
| - | - | 324 | 90 | 205 | 233 | 3.2 | 4-Ø9 | 170 |
| b | c | d | e | |||||
| 28 | 97 | 28 | 30 |
Note: Dimensions in mm
Orion CBX-15 Part Breakdown
| # | Part | Part Number |
|---|---|---|
| 1 | Motor | JVP-5 Three Phase |
| 2 | Belt Cover Left | JVP-3DP-00002A/3B |
| 3 | Belt Cover Right | JVP-3DP-00002A/3B |
| 4 | Drive Belt(2) | 35302430010 / JVP-3DP-00004 |
| 5a | Pump Pulley (A) | 04037303010 / JVP-3DP-00005A/B |
| 5b | Pump Pulley (B) | 04037303010 / JVP-3DP-00005A/B |
| 6 | Motor Pulley | 04037302010 / JVP-3DP-00006 |
| 7 | Spring | JVP-3/5/6DP-00007 |
| 8 | Base Plate (Pressure) | JVP-3/5/6DP-00008 |
| 9 | Base Plate (Vacuum) | JVP-3/5/6DP-00009 |
| 10 | End Plate | Contact |
| 11 | Motor Retaining Plate | 4009723010 |
| 12 | Adjustment Rod | ADJ-6MM |
| 13 | Complete Base | Base-CBX-15 |
Product Manual
Orion CBX-15 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1001-00027 | 4 |
| Spring Tube, new style, Filter-side | JVP-1001-00029V | 4 |
| Rubber Gaskets for Filter Case and Muffler cover | 03039263010 | 4 |
| Washer Gaskets for Filter Knobnut | JVP-1001-00033A | 4 |
| Manifold Gasket | JVP-1001-00013 | 2 |
| Shims / Liners | JVP-3-00010 | 20 |
| Bearings | JVP-3-00006 | 4 |
| Bearing Spacers | JVP-3-00007 | 4 |
| Vanes | JVP-3-00003 | 8 |
| Timing Belts | JVP-3DP-00004 | 2 |
