The Orion™ KRA series of vacuum pumps are used in every part of a variety of industrial vacuum situations. They are used where large amounts of vacuum and/or pressure are needed to run robotics, vacuum conveyors, laminators, printing presses, feeders, vacuum chuck, and vacuum lifting.
These pumps are capable of producing vacuum levels up to 25 inches of mercury. The Orion™ KRA-8 and KRA-10 are no longer being produced. But have no fear, Jallo offers complete replacements, replacement parts, replacement pumps, and in-house service of your Orion™ KRA-8, KRA-10, and KRA-12 vacuum pumps.
Orion KRX-3 Vacuum and Pressure Specifications
Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
---|---|---|---|---|---|---|---|---|
KRX3-SS | No Motor | 7.4 | 25.0" | 8.5 psig | 46.3 | 21 | ||
KRX3-SS | 208-230/460V | 1750 | 0.5 | 7.4 | 25.0" | 8.5 psig | 46.3 | 21 |
Performance Specifications
External Dimensions
H | D | W | A | B | C | E | F | G |
248 | 270 | 468 | Ø144 | 80 | 135 | 42 | 177 | 50 |
I | J | K | L | M | N | O | P | Q |
208 | 176 | 32 | 0 | 304 | 364 | 30 | 76.5 | 210.5 |
R | S | T | U | V | X | Y | Z | |
71 | 78 | 154 | 90 | 205 | 230 | 4.5 | 4-Ø9 |
Note: Dimensions in mm

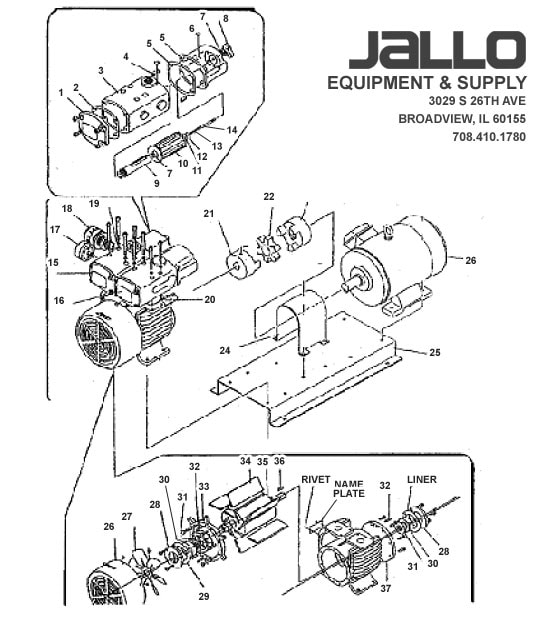

Orion KRX-3 Part Breakdown
# | Part | Part Number | Quantity |
---|---|---|---|
1 | Vacuum Regulator | 03039289010/JVP-1001-00024 | 1 |
2 | Pressure Regulator | 03039289010/JVP-1001-00023 | 1 |
3 | Pressure Gauge | 04002320010/JVP-ALL-00037/38 | 1 |
4 | Vacuum Gauge | 04002320010/JVP-ALL-00037/38 | 1 |
*5 | SDX Case Complete | Contact | 1 |
6 | Manifold Bolt | Contact | 2 |
7a | Manifold Cap (v) | 03039287020 | 2 |
7b | Manifold Cap (p) | 03039287010 | 2 |
8 | Manifold Cap Gasket | 03039292010 | 2 |
9 | SDX Case | 01031013010 | 1 |
10 | Plug | 04039361010/HexPlug-JVP-3/5/6 | |
11 | Filter Rod | 04039360040 | 2 |
12 | Filter | 04000028010/JVP-1001-00027 | 2 |
13 | Spring Tube | 04039359010/JVP-1001-00029V | 2 |
14 | Filter Gasket | 03039263010 | 2 |
15 | Filter Case KRX-3 | 03039259010 | 1 |
16 | Gasket Washer | 04000695010/JVP-1001-00033A | 2 |
17 | Knob | 04034947010/JVP-1001-00033 | 2 |
18 | Muffler Cover | 03039260010 | 1 |
19 | Pump Only KRX-3 | Contact | 1 |
20 | Manifold Gasket | 04009579010/JVP-1001-00013 | 1 |
21 | Fan Housing Guard | 03039901010 | 1 |
22 | Fan | 02034550010 | 1 |
23 | Bearing Cover | 04009352010/JVP-3-00009 | 2 |
24 | Liner/Shim | JVP-3-00010 | 10 |
25 | Bearing | 039001116220/JVP-3-00006 | 2 |
26 | Bearing Spacer | 04009353010/JVP-3-00007 | 2 |
27 | Side Plate F.S. | 03039266010 | 1 |
28 | Taper Pin | 033611111300 | 4 |
29 | Rotor | 03039273010 | 1 |
30 | Key | 033300412000/JVP-1001-00015 | 1 |
31 | Vane/Blade | 04009564010/JVP-3-00003 | 4 |
32 | Pump Housing KRX-3 | 02034516010 | 1 |
33 | Side Plate M.S. | 03039267010 | 1 |
34 | Pump Side Coupling | 04034905010 | 1 |
35 | Spider | 04002338010 | 1 |
36 | Motor Side Coupling | 04034905020 | 1 |
37 | Motor | Contact | 1 |
38 | Coupling Guard | 03036521010 | 1 |
39 | Base | Contact | 1 |
Download Part Breakdown PDF
Product Manual
Orion KRX-3 Rebuild Kit Part List
Description | Product ID | Quantity |
---|---|---|
Filters | JVP-1001-00027 | 2 |
Spring Tube, new style, Filter-side | JVP-1001-00029V | 2 |
Rubber Gaskets for Filter Case and Muffler cover | 03039263010 | 2 |
Washer Gaskets for Filter Knobnut | JVP-1001-00033A | 2 |
Manifold Gasket | JVP-1001-00013 | 1 |
Shims / Liners | JVP-3-00010 | 10 |
Bearings | JVP-3-00006 | 2 |
Bearing Spacers | JVP-3-00007 | 2 |
Vanes | JVP-3-00003 | 4 |
Spider Flexible Coupling | 04002338010 | 1 |
