The Orion™ KRADP series of vacuum pumps are used in the industrial arena where large amounts of flow are needed to run your industrial equipment. These pumps can produce independent vacuum and pressure levels from a single source. They are used where large amounts of vacuum and/or pressure are needed to run robotics, vacuum conveyors, laminators, printing presses, feeders, etc.
These pumps are capable of producing vacuum levels of up to 25 inches of mercury. The Orion™ KRADP Series of pumps can produce well over 150 CFM of vacuum and pressure.
Orion KRA-10DP Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| KRA10-DP | No Motor | 87.0 | 25.0" | 7.1 psig | ||||
| KRA10-DP | 208-230/460V | 980 | 5.5 / 7.5 | 26.5 | 25.0" | 7.1 psig | 529.0 | 240.0 |

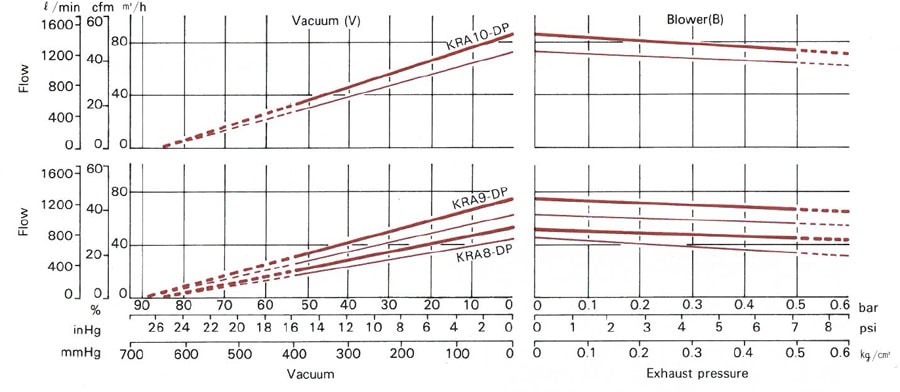

Performance Specifications

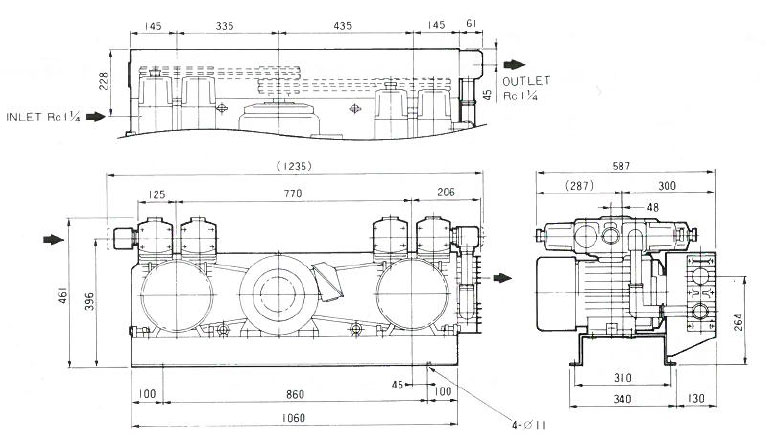

External Dimensions
Orion KRA-10DP Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1002-00027 | 4 |
| Spring Tube, new style, Filter-side | JVP-8-00029 | 4 |
| Rubber Gaskets for Filter Case and Muffler Cover | JVP-8-00030 | 4 |
| Washer Gaskets for Filter Knobnut | JVP-10-00033A | 4 |
| Manifold Gasket | JVP-10-00013 | 4 |
| Shims / Liners | JVP-10-00010 | 20 |
| Bearings | JVP-10-00006 | 4 |
| Bearing Spacers | JVP-10-00007 | 4 |
| Vanes | JVP-10-00003 | 12 |
| Copper Bolt Washer / Gaskets | JVP-10-00076 | 16 |
| Bearing Spacer Collars | JVP-10-00008 | 4 |
