The Orion™ KRA series of vacuum pumps are used in every part of a variety of industrial vacuum situations. They are used where large amounts of vacuum and/or pressure are needed to run robotics, vacuum conveyors, laminators, printing presses, feeders, vacuum chuck, and vacuum lifting.
These pumps are capable of producing vacuum levels up to 25 inches of mercury. The Orion™ KRA-8, KRA-10, and KRA-12 are no longer being produced. But have no fear, Jallo offers complete replacements, replacement parts, replacement pumps, and in-house service of your Orion™ KRA-8, KRA-10, and KRA-12 vacuum pumps.
Orion KRA-10 Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| KRA10-SP | No Motor | 65.0 | 25.0" | 7.1 psig | ||||
| KRA10-SP | 208-230/460V | 1200 | 5.0 | 65.0 | 25.0" | 7.1 psig | 286.6 | 130.0 |

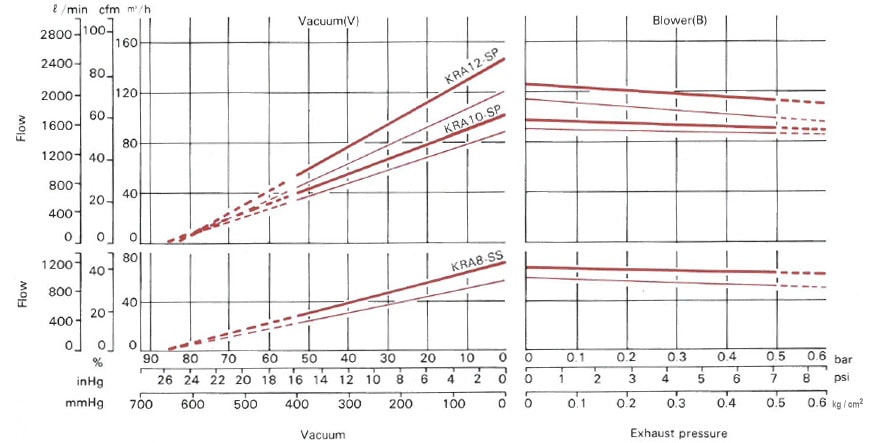

Performance Specifications

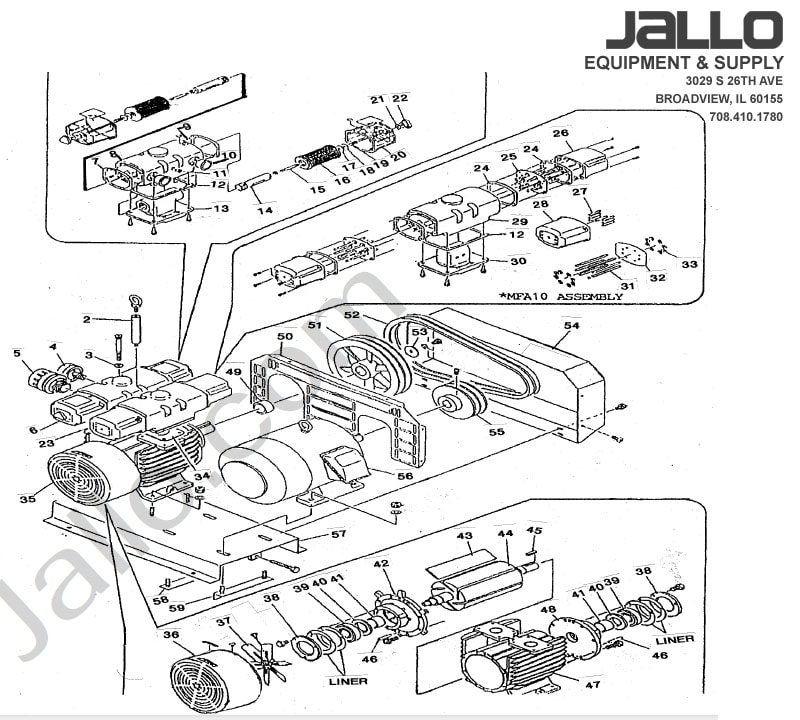

Orion KRA-10 Part Breakdown
| # | Part | Part Number | Quantity |
|---|---|---|---|
| 1 | KRA10V Pump Only | JVP-10A P/O | 1 |
| 2 | Auxiliary Bolt | Contact | 1 |
| 3 | Gasket C | 04000043010 | 8 |
| 4 | D-Type Compound Gauge | Contact | 1 |
| *5 | VC100 Assembly | Contact | 1 |
| 6 | VFA10 Assembly | Contact | 1 |
| *7 | Rubber Packing | 04006914010 | 2 |
| 8 | Main Case | Contact | 1 |
| 9 | Corrugated Spring Pin | Contact | 4 |
| 10 | Blind Plug | Contact | 2 |
| 11 | Blind Plug | Contact | 1 |
| 12 | Gasket D | 04002843010 | 2 |
| 13 | Sub Case A | Contact | 1 |
| 14 | Filter Pipe | 04002811010 | 2 |
| 15 | Stay Bolt | 04000023010 | 2 |
| 16 | Filter Element | 04000451010 / JVP-1002-00027 | 2 |
| 17 | Gasket Washer | 04002868020 | 2 |
| 18 | Washer | 04000830010 / JVP-8-00076 | 2 |
| 19 | Spring A | 04000320010 / JVP-8-00029 | 2 |
| 20 | Filter Case B | 02000002010 | 2 |
| 21 | Gasket Washer For Filter Knobnut | 04001458010 / JVP-1002-00033A, | 2 |
| 22 | Knob Nut Assembly | 04034947020 | 2 |
| 23 | MFA10 Assembly | 03001425010 | 1 |
| 24 | Gasket B | 04000020010 / JVP-8-00034 | 4 |
| 25 | Shield | Contact | 2 |
| 26 | Muffler Case Assembly | Contact | 2 |
| 27 | Muffler Pipe B | Contact | 7 |
| 27a | Muffler Pipe | Contact | 7 |
| 28 | Muffler Case | Contact | 1 |
| 29 | Main Case | Contact | 1 |
| 30 | Sub Case B | Contact | 1 |
| 31 | Muffler Pipe | Contact | 8 |
| 32 | Shielding Disk | Contact | 1 |
| 33 | Bush Nut | Contact | 16 |
| 34 | Gasket A | 04002846010 / JVP-10-00013 | 2 |
| 35 | KRA10 Bare Pump G1 | JVP-10A N/M | 1 |
| 36 | Fan Cover Assembly | 03040702010 | 1 |
| 37 | Cooling Fan Assembly | 03000024030 / JVP-8A-00011M | 1 |
| 38 | Bearing Retainer | 04000015050 | 2 |
| 39 | Bearing NSK | 39002124220 / JVP-10-00006 | 2 |
| 40 | Spacer | 04002840010 / JVP-10-00007 | 2 |
| 41 | Spacer Collar | 04002841010 / JVP-10-00008 | 3 |
| 42 | Side Plate A | 03001419010 | 1 |
| 43 | Vane/Blade | 04036531010 / JVP-10-00003 | 6 |
| 44 | Rotor Assembly | 02000768010 / JVP-10-00002 | 1 |
| 45 | Parallel Key | Contact | 1 |
| 46 | Taper Pin | 33611114100 | 4 |
| 47 | Cylinder | 01000194010 | 1 |
| 48 | Side Plate B | 03001420010 | 1 |
| 49 | Collar | Contact | 1 |
| 50 | Partition | 02034575010 | 1 |
| 51 | Fan Type Pulley | Contact | 1 |
| 52 | V Belt | 35300310440 / JVP-10-00085 | 2 |
| 53 | Washer | Contact | 1 |
| 54 | Belt Cover Assembly | 03040710010 | 1 |
| 55 | V Pulley | Contact | 1 |
| 56 | Motor (Mitsubishi) | JVP-10 3-Phase | 1 |
| 57 | Base Assembly | Contact | 1 |
| 58 | Bolt Fixing Plate A | Contact | 1 |
| 59 | Bolt Fixing Plate B | Contact | 1 |
Product Manual
Orion KRA-10 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1002-00027 | 2 |
| Filter Spring Tube | JVP-8-00029 | 2 |
| Rubber Filter Gaskets for Filter Cover | JVP-8-00030 | 2 |
| Washer Gaskets for Filter Knobnut | JVP-1002-00033A | 2 |
| Manifold Gasket | JVP-10-00013 | 2 |
| Shims / Liners | JVP-10-00010 | 10 |
| Bearings | JVP-10-00006 | 2 |
| Bearing Spacers | JVP-10-00007 | 2 |
| Vanes | JVP-10-00003 | 6 |
| Bearing Spacer Collars | JVP-10-00008 | 2 |
| V-Belts | JVP-10-00085 | 2 |
| Copper Bolt Washer / Gaskets | JVP-8-00076 | 8 |
