The Orion™ CBX series vacuum pumps are dual driven Orion™ KRX series vacuum and pressure pumps, specialized in the printing and converting arena, where separate controls for vacuum and pressure are needed from the same source. The Orion™ CBX is also used in the Graphic art, printing, and printing converting industries.
The Orion™ CBX and KRX series are no longer in production. But have no fear, Jallo carries complete units in stock, direct replacements, as well as many parts no longer produced. We also carry rebuilt kits to completely overhaul your Orion™ CBS-15, CBS-25, CBS-40, CBX-15, CBX-25, and CBX-40 at your facility, or feel free to call us or send your pump to us, and we will give you a free estimate on the repairs needed.
Orion CBX-62 Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| CBX62 | No Motor | 34 - 68 | 25.0" | 8.5 psig | ||||
| CBX62 | 208-230/460V | 1370 | 5.0 | 34 - 68 | 25.0" | 8.5 psig | 235.9 | 107 |
Performance Specifications
External Dimensions
| H | D | W | A | B | C | E | F | G |
| 288 | 334 | 647 | Ø207 | 80 | 173 | 54 | 227 | 50 |
| I | J | K | L | M | N | O | P | Q |
| 248.5 | 254 | 50 | 75 | 305 | 381 | 45.5 | 150.5 | 251 |
| R | S | T | U | V | X | Y | Z | a |
| - | - | 324 | 90 | 240 | 268 | 3.2 | 4-Ø9 | 170 |
| b | c | d | e | |||||
| 28 | 132 | 28 | 30 |
Note: Dimensions in mm

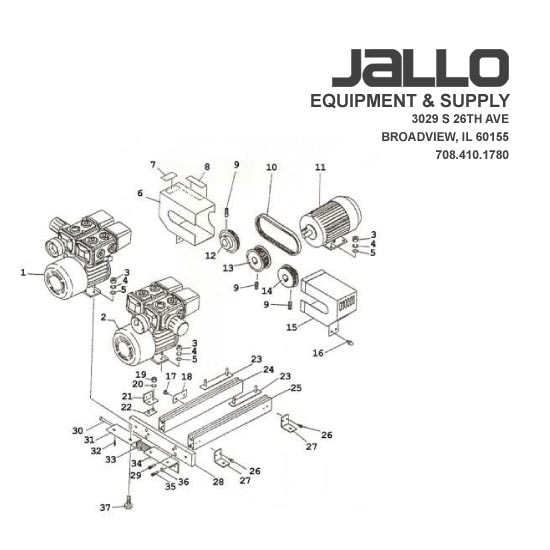

Orion CBX-62 Part Breakdown
| # | Part | Part Number | Quantity |
|---|---|---|---|
| 1 | KRS-7D(Pump Only) | KRS-7A(V) | 1 |
| 2 | KRS-7D(Pump Only) | KRS-7A(B) | 1 |
| 3 | Hexagon Nut | 032000114360 | 4 |
| 4 | Spring Washer | 033000511210 | 8 |
| 5 | Plain Washer | 033000013120 | 8 |
| 6 | Belt Cover | 03008798010 | 1 |
| 7 | Filter Caution Seal | Contact | 1 |
| 8 | Belt Caution Seal | Contact | 1 |
| 9 | Socket Head Key Screw | 031110081010 | 3 |
| 10 | Timing Belt | 035302430040 | 2 |
| 11 | Electric Motor | N/A | 1 |
| 12 | Timing Pulley | 04037322010 | 1 |
| 13 | Timing Pulley | 04037320010 | 1 |
| 14 | Timing Pulley | 04037321010 | 1 |
| 15 | Belt Cover B Assembly | 03008799010 | 1 |
| 16-36 | Base | 03008797010 | 1 |
| 16 | Hexagon Head Bolt | 30850512320 | 4 |
| 17 | Knock Pin | 31310020520 | 2 |
| 18 | Name Plate | Contact | 1 |
| 19 | Hexagon Nut | 32000110360 | 4 |
| 20 | Spring Washer | 33000507210 | 4 |
| 21 | Belt Cover Clamp | 04010203010 | 2 |
| 22 | Bolt Retaining Plate | 04010201010 | 2 |
| 23 | Bolt Retaining Plate | 04010201010 | 2 |
| 24 | Motor Base (1) | 03008795010 | 1 |
| 25 | Motor Base (2) | 03008796010 | 1 |
| 26 | Hexagon Nut Bolt | 30850510320 | 8 |
| 27 | Base Foot | 04009724010 | 4 |
| 28 | Flange | 03009009010 | 1 |
| 29 | Socket Head Bolt | 30060820460 | 4 |
| 30 | Hexagon Head Bolt | 30011088320 | 1 |
| 31 | Base | 04010206010 | 4 |
| 32 | Spring Pin | 33641208000 | 1 |
| 33 | Spring | 04037343010 | 1 |
| 34 | Base (B) | 04010207010 | 4 |
| 35 | Socket Head Bolt | 30061025460 | 4 |
| 36 | Plain Washer | 04010321010 | 4 |
| 37 | Hexagon Head Bolt | 30011025320 |
Download Part Breakdown PDF
Product Manual
Orion CBX-62 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1002-00027 | 2 |
| Delivery Elements | JVP-1002-00026 | 2 |
| Spring Tube, new style, Filter-side | 04042925010 | 4 |
| Rubber Gaskets for Filter Case and Muffler cover | KRX-7A-00030 | 4 |
| Manifold Cap Gaskets | KRX-7A-00034 | 4 |
| Washer Gaskets for Filter Knobnut | JVP-1002-00033A | 4 |
| Manifold Gasket | JVP-7-00013 | 4 |
| Shims / Liners | JVP-7-00010 | 20 |
| Bearings | JVP-7-00006 | 4 |
| Bearing Spacers | JVP-7-00007 | 4 |
| Vanes | 04039395010 | 8 |
| Timing Belts | 35302430040 | 2 |
