The Orion™ CBF series of vacuum pumps are the work force of the industry, they are dual KRF series pumps in a single unit. They can be used where independent levels of vacuum and pressure are needed to control your processes, as well as where large quantities of vacuum and/or pressure are needed. They are used in the material handling, air sampling, suction lifting, packaging, vacuum sealing, and blow molding industries.
The CBF series is the replacement for the Orion™ CBX/CBS series vacuum pumps. Jallo carries complete units, direct replacements, and many parts in stock. We also carry rebuild kits to completely overhaul your Orion™ CBF-15, CBF-25, and CBF-40 vacuum pumps, or if you prefer, ship your CBF pump to us, and we will give you a free estimate on the repairs needed.
Orion CBF-15 Vacuum and Pressure Specifications
| Model | Motor | RPM | HP | CFM | Max. Hg" | Max. PSI | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| CBF15-SS | No Motor | 9.9 ~ 19.8 | 17.7" | 8.7 psig | ||||
| CBF15-SS | 208-230/460V | 1750 | 1.0 | 9.9 ~ 19.8 | 17.7" | 8.7 psig | 81.0 | 36.7 |

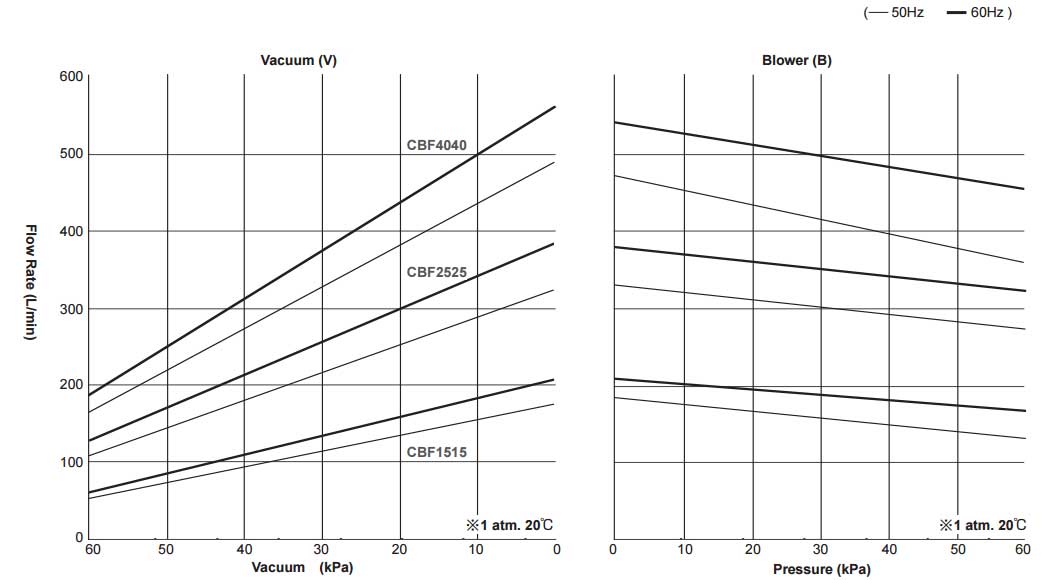

Performance Specifications

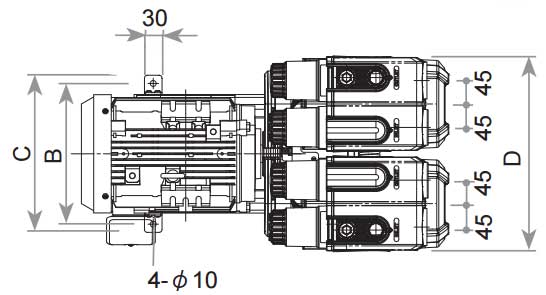

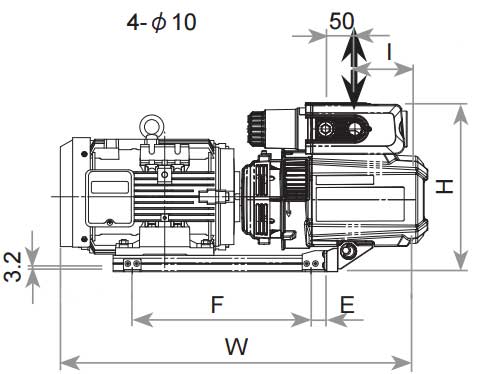

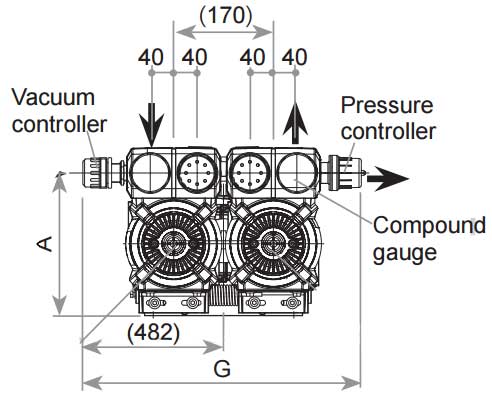

External Dimensions
| H | D | W | A | B | C |
| 269 | 331 | 483 | 224 | 205 | 233 |
| E | F | G | I | J | K |
| 15 | 225 | 482 | 95 | - | - |
Note: Dimensions in mm
Orion KRX-3 Part Breakdown
| # | Part | Part Number | Quantity |
|---|---|---|---|
| 1 | Vacuum Regulator | JVP-1001-00024 | 1 |
| 2 | Pressure Regulator | JVP-1001-00023 | 1 |
| 3 | Pressure Gauge | JVP-ALL-00037/38 | 1 |
| 4 | Vacuum Gauge | JVP-ALL-00037/38 | 1 |
| *5 | SDX Case Complete | Contact | 1 |
| 6 | Manifold Bolt | Contact | 2 |
| 7a | Manifold Cap (v) | 03039262010 | 2 |
| 7b | Manifold Cap (p) | 03039261020 | 2 |
| 8 | Manifold Cap Gasket | 03039292010 | 2 |
| 9 | SDX Case | 01031013010 | 1 |
| 10 | Plug | 04039361010 / HexPlug-JVP-3/5/6 | |
| 11 | Filter Rod | 04039360020 | 2 |
| 12 | Filter | 04000028010 / JVP-1001-00027 | 2 |
| 13 | Spring Tube | 04039359010 / JVP-1001-00029V | 2 |
| 14 | Filter Gasket | 03039263010 | 2 |
| 15 | Filter Case KRX-3 | 03039259010 | 1 |
| 16 | Gasket Washer | 04000695010/JVP-1001-00033A | 2 |
| 17 | Knob | 04034947010 / JVP-1001-00033 | 2 |
| 18 | Muffler Cover | 03039260010 | 1 |
| 19 | Pump Only KRX-3 | Contact | 1 |
| 20 | Manifold Gasket | 04009579010 / JVP-1001-00013 | 1 |
| 21 | Fan Housing Guard | 3039901010 | 1 |
| 22 | Fan | 02034550010 | 1 |
| 23 | Bearing Cover | 04009352010 / JVP-3-00009 | 2 |
| 24 | Liner/Shim | JVP-3-00010 | 10 |
| 25 | Bearing | JVP-3-00006 | 2 |
| 26 | Bearing Spacer | 04009353010 / JVP-3-00007 | 2 |
| 27 | Side Plate F.S. | 03039266010 | 1 |
| 28 | Taper Pin | 33611111300 | 4 |
| 29 | Rotor | 03039273010 | 1 |
| 30 | Key | 33300412000 / JVP-1001-00015 | 1 |
| 31 | Vane/Blade | 04009564010/JVP-3-00003 | 4 |
| 32 | Pump Housing KRX-3 | 02034516010 | 1 |
| 33 | Side Plate M.S. | 03039267010 | 1 |
| 34 | Pump Side Coupling | 04034905010 | 1 |
| 35 | Spider | 04002338010 | 1 |
| 36 | Motor Side Coupling | 04034905020 | 1 |
| 37 | Motor | Contact | 1 |
| 38 | Coupling Guard | 03036521010 | 1 |
| 39 | Base | Contact | 1 |
Download Part Breakdown PDF
Product Manual
Orion CBF-15 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Filters | JVP-1001-00027 | 4 |
| Filter Spring Fitting | FltSpring-KRF-15A/25A/40A | 4 |
| O-Rings for Filter Case and Muffler Cover | 35152100050 | 4 |
| Washer Gaskets for Filter Knobnut | JVP-1001-00033A | 2 |
| Manifold Gasket | JVP-1001-00013 | 4 |
| Shims / Liners | JVP-3-00010 | 20 |
| Bearings | JVP-3-00006 | 4 |
| Bearing Spacers | JVP-3-00007 | 4 |
| Vanes | JVP-3-00003 | 8 |
| Timing Belts | JVP-3DP-00004 | 2 |
