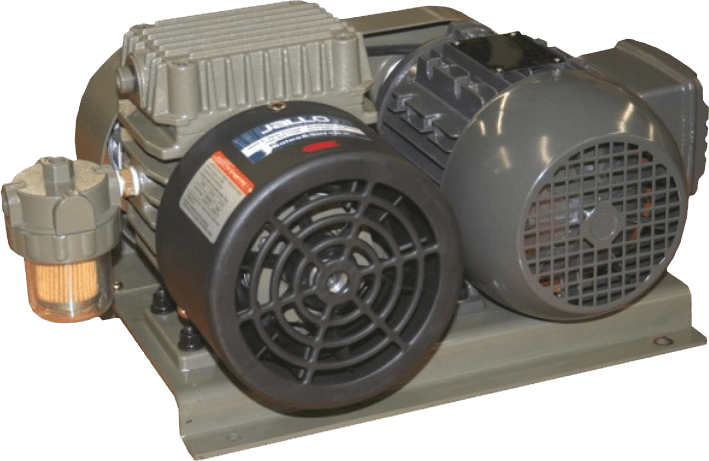

The JVP HP series of vacuum pumps are specialized in industries where a clean dry vane technology is needed, as well as high vacuum levels. These pumps are capable of producing vacuum levels up to 29.99 inches of mercury, or 97.5 kPa. These pumps are used in the high-tech industries, where clean dry running pumps are necessary, as well as the high level of vacuum produced, such as robotic pick and place machines and such. The JVP HP series of vacuum pumps range CFM levels from 5 to 10 CFM.
JVP-750 Vacuum Specifications
| Hz | Vacuum Hg" | Vacuum KPA | Vacuum CFM |
Vacuum m3/hr |
Suction / Exhaust Port Diameter | Motor | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| 60 | 28 | 94.8 | 10.6 | 18 | RC 3/8 | 3-Phase 0.4kW 4P | 85 | 27.2 |
| 50 | 28 | 94.8 | 9.4 | 15.9 | RC 3/8 | 3-Phase 0.4kW 4P | 85 | 27.2 |

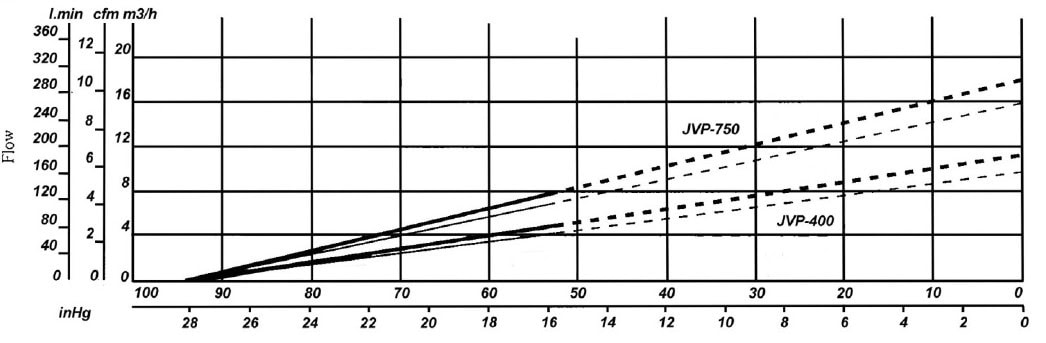

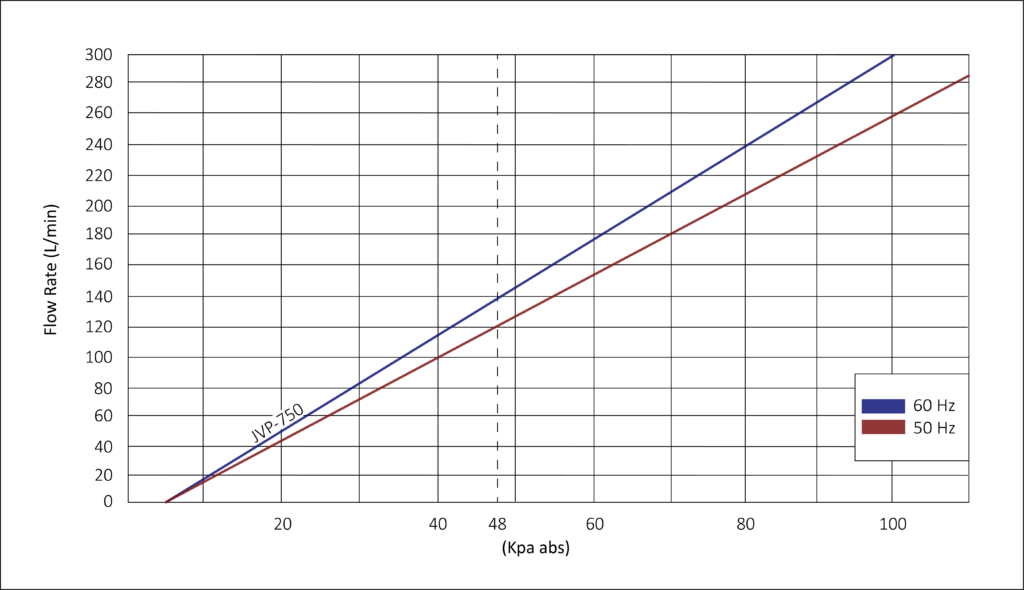

Performance Specifications

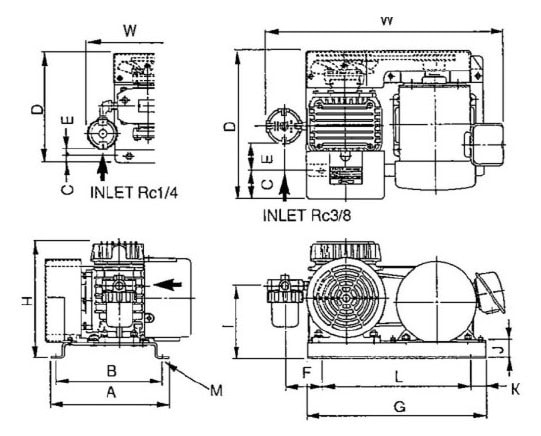

External Dimensions
JVP-3 Vacuum and Pressure Specifications
| Hz | RPM | Vacuum Hg" | Vacuum KPA | Vacuum CFM |
Vacuum m3/hr |
Pressure PSI | Pressure KPA | Blower CFM |
Blower m3/hr |
LBs | KGs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 1700 | 25 | 84.6 | 7.4 | 12.6 | 8.5 | 58.6 | 7.4 | 12.6 | 46.3 (52.9) | 21.0 (24.0) |
| 50 | 1450 | 25 | 84.6 | 6.4 | 10.8 | 8.5 | 58.6 | 6.5 | 11.1 | 46.3 (52.9) | 21.0 (24.0) |
Note: Dimensions in mm
JVP-10 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Vane | JVP-10-00003 | 4 |
| Bearing | JVP-10-00006 | 2 |
| Spacer | JVP-10-00007 | 2 |
| Bearing Spacer Collar | JVP-10-00008 | 2 |
| Shim Kit | JVP-10-00010 | 10 |
| Manifold Gasket | JVP-10-00013 | 1 |
| Filter (Pleated paper) | JVP-1002-00027 | 1 |
| Spring tube | JVP-8-00029 | 1 |
| Rubber Filter Gasket | JVP-8-00030 | 2 |
| Washer Gasket for Knob Nut | JVP-1002-00033A | 2 |
| Copper Washer | JVP-8-00076 | 8 |
| V-Belt | 35300310440 | 2 |
