The JVP HP series of vacuum pumps are specialized in industries where a clean dry vane technology is needed, as well as high vacuum levels. These pumps are capable of producing vacuum levels up to 29.99 inches of mercury, or 97.5 kPa. These pumps are used in the high-tech industries, where clean dry running pumps are necessary, as well as the high level of vacuum produced, such as robotic pick and place machines and such. The JVP HP series of vacuum pumps range CFM levels from 5 to 10 CFM.
JVP-400 Vacuum Specifications
| Hz | Vacuum Hg" | Vacuum KPA | Vacuum CFM |
Vacuum m3/hr |
Suction / Exhaust Port Diameter | Motor | LBs | KGs |
|---|---|---|---|---|---|---|---|---|
| 60 | 28 | 94.8 | 7.2 | 12.2 | RC 3/8 | 3-Phase 0.4kW 4P | 60 | 27.2 |
| 50 | 28 | 94.8 | 6.1 | 10.3 | RC 3/8 | 3-Phase 0.4kW 4P | 60 | 27.2 |

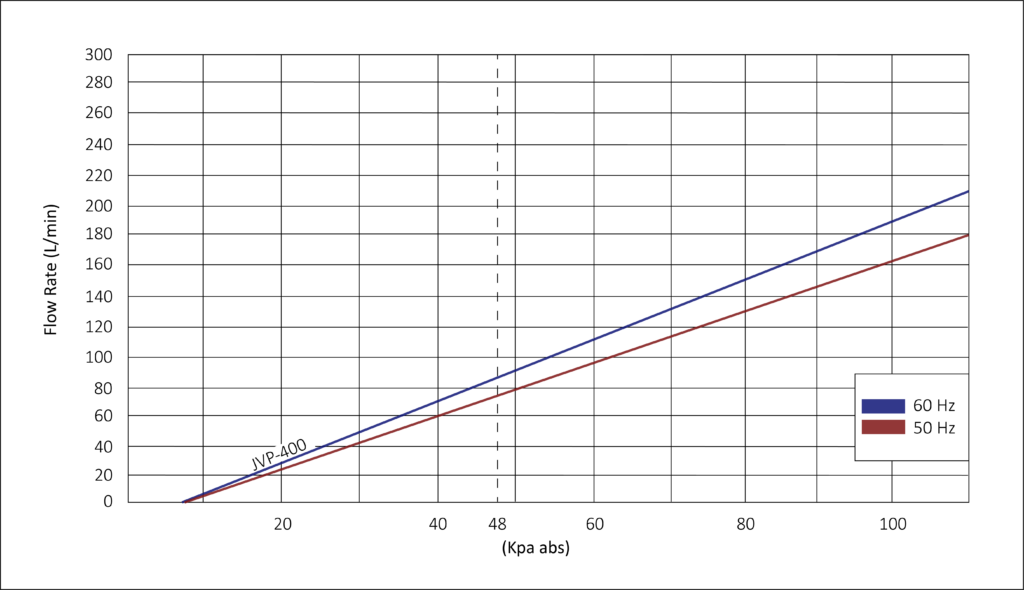

Performance Specifications
External Dimensions
| W | D | H | A | B | C | E |
| 400 | 264 | 213 | 230 | 205 | 3/8" | 131 |
| F | G | I | J | K | L | M |
| 25 | 330 | 280 | 124 | 33 | 61 | 4-Ø10 |
Note: Dimensions in mm
JVP-400 Rebuild Kit Part List
| Description | Product ID | Quantity |
|---|---|---|
| Ban Flex Belt | JVP-400-00002 | 1 |
| O-Ring | JVP-400-00010 | 1 |
| Filter Element | JVP-400-00011A | 1 |
| Bearing NSK | JVP-400-00017 | 2 |
| Spacer | JVP-400-00018 | 2 |
| Vane | JVP-400-00022 | 6 |
| Gasket | JVP-400-00027 | 1 |
| Check Valve | JVP-400-00028 | 1 |
| Liner / Shim Kit | JVP-5-00010 | 10 |
