The JVP HP series of vacuum pumps are specialized in industries where a clean dry vane technology is needed, as well as high vacuum levels. These pumps are capable of producing vacuum levels up to 29.99 inches of mercury, or 97.5 kPa. These pumps are used in the high-tech industries, where clean dry running pumps are necessary, as well as the high level of vacuum produced, such as robotic pick and place machines and such. The JVP HP series of vacuum pumps range CFM levels from 5 to 10 CFM.
JVP-200 Vacuum Specifications
| Hz | Vacuum Hg" | Vacuum KPA | Vacuum CFM | Vacuum m^3/hr | Suction / Exhaust Port Diameter | Motor | LBs | KGs |
| 60 | 28.3 | 95.99 | 5.12 | 8.7 | 1/4" | 3 phase, .186 kW | 33 | 15 |
| 50 | 28.3 | 95.99 | 4.23 | 7.2 | 1/4" | 3 phase, .186 kW | 33 | 15 |
No content at this time. Updates coming imminently.

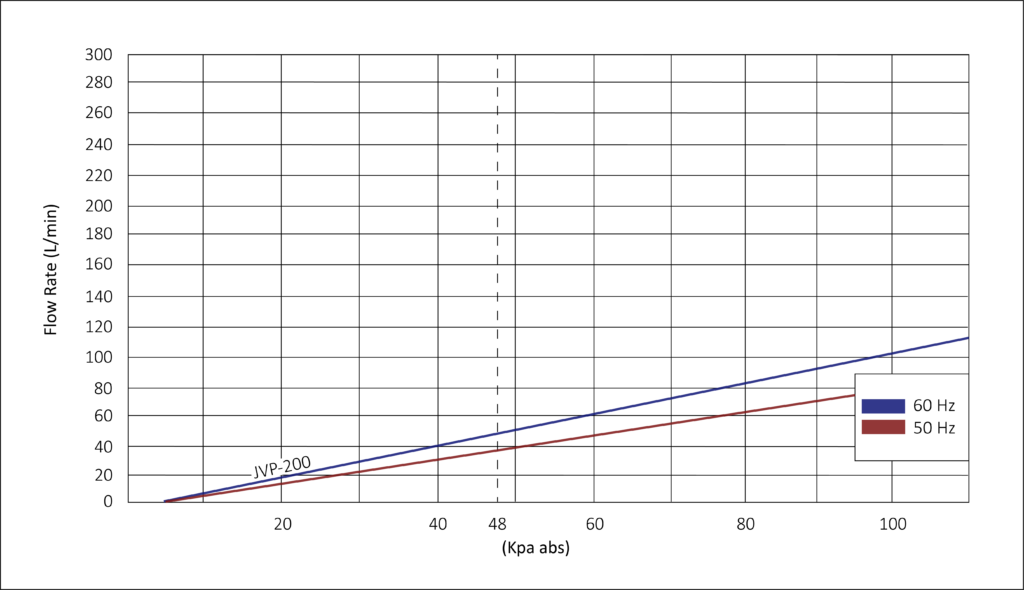

Performance Specifications
Graphics Coming Soon!
External Dimensions
| W | D | H | A | B | C | E |
| 360 | 227 | 199 | 205 | 180 | 1/4" | 124 |
| F | G | I | J | K | L | M |
| 28 | 290 | 235 | 112 | 30 | 56 | 4-Ø9 |
